-New M5 OS reinforced chassis and fork.

-Oversize chassis with redesign and internal alignment layers of carbon fiber.

-Position hydraulic cables with self-adhesive guides.

-Oversized fork with Tapered seatpost address.

-Both chassis and fork incorporate new internal structure and alignment of the layers of carbon fiber, which is a significant improvement over its predecessor.

-ProRace new 160mm brake discs with special materials and roughness for Trial + 20% braking.

-ProRace new brake pads with special compound + 20% braking.

-New Carbon fiber handlebar ProRace 730mm.

-New freewheel 18 teeth 135.9 ProRace high quality.

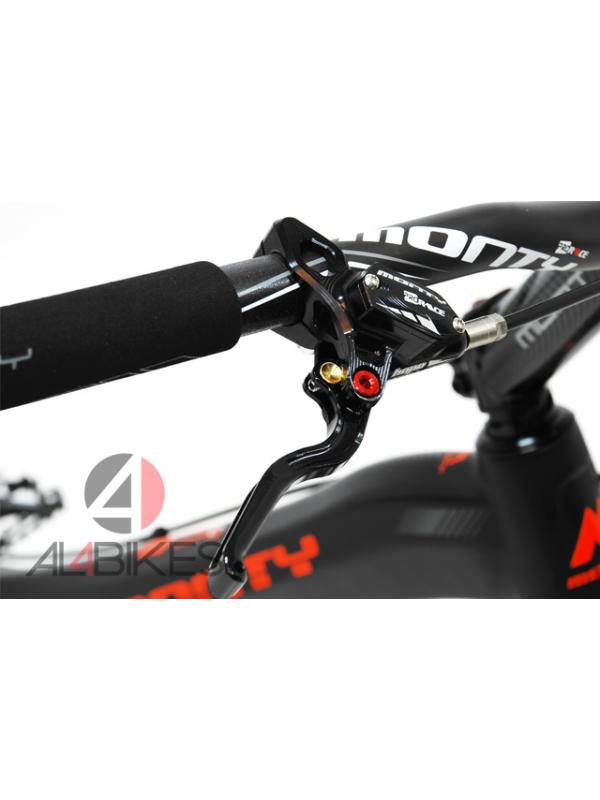

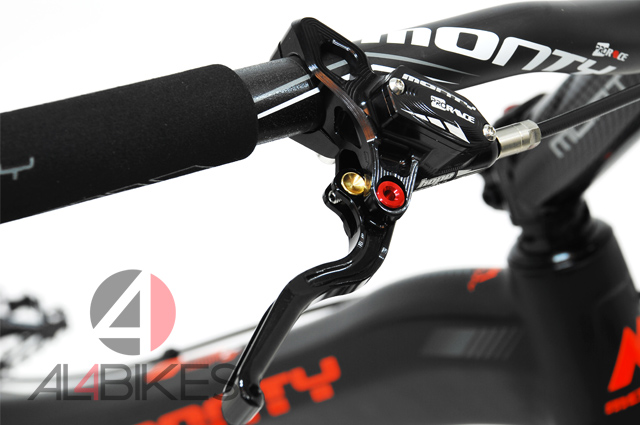

-New pump Monty Hope Trial Zone Black Edition special brake.

-Dual density reinforced cuffs.

-Washers 7075 new lightweight reel weight.

-ProRace tires.

-Weight: 7.26 kg.

" af="Esta bicicleta supone una revolución en el mundo de la bicicleta de Biketrial y rompe con todo lo establecido hasta ahora, en cuanto a materiales, formas y geometrías.">This bike is a revolution in the world of Biketrial bike and breaks everything set up now, in terms of materials, shapes and geometries.
With the new M5 Monty has been spared no efforts and have led to the ultimate consequences of technology experience and over 25 years in the design and development Biketrial bike. The new M5 is built entirely in carbon fiber. It is the first bicycle made entirely market in this material, which represents a revolution in this sector.

One of the innovations we have incorporated into the new M5 is the integration of the string in the frame set by passing through the inside of it at the top. In addition, the M5 comes standard Monty chassis protectors fully integrated into the whole, to avoid hitting the chassis in the most exposed to the demand for pilots.

It also incorporates many improvements over its predecessor, making it the bike world's most advanced Biketrial. His appearance is scheduled for spring 2012, with the model range Biketrial star Monty 2012.

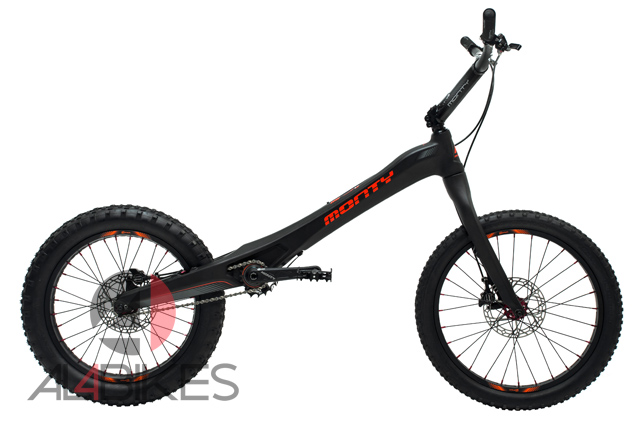

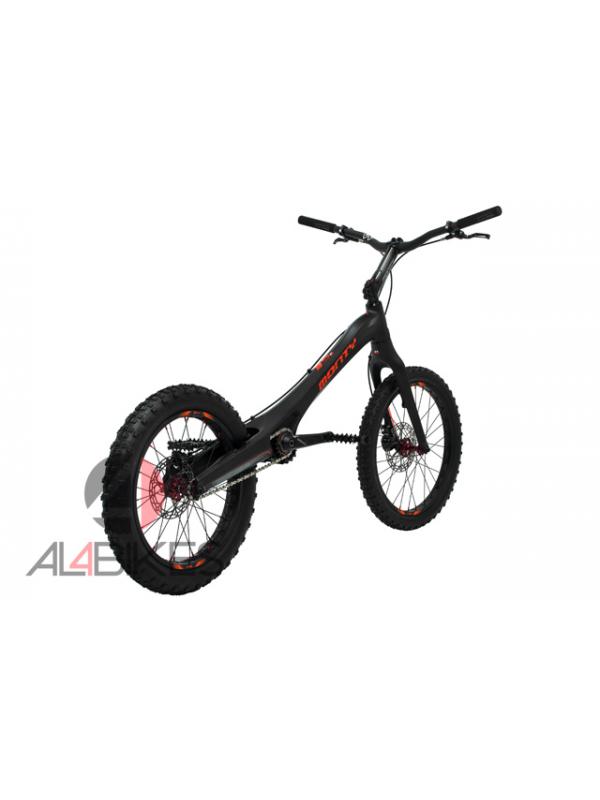

Monty M5 Technical Specifications

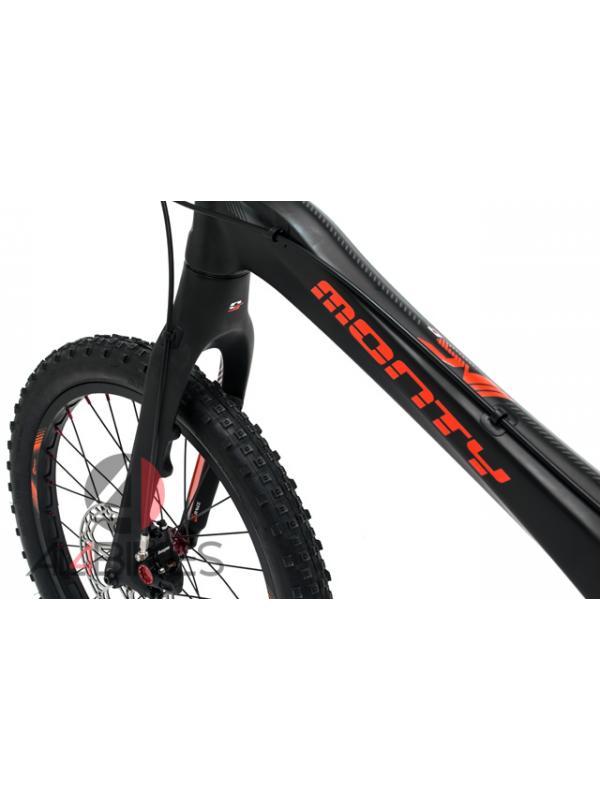

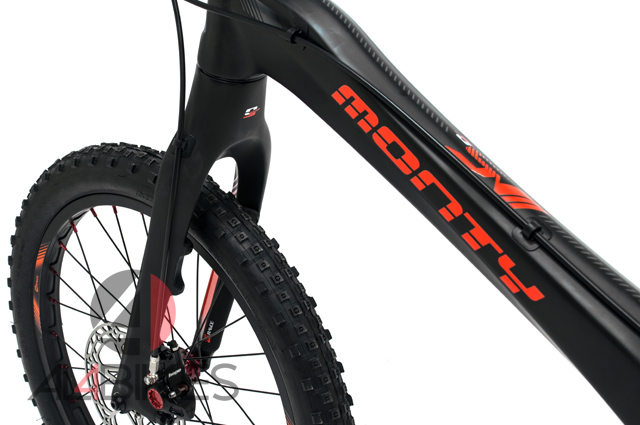

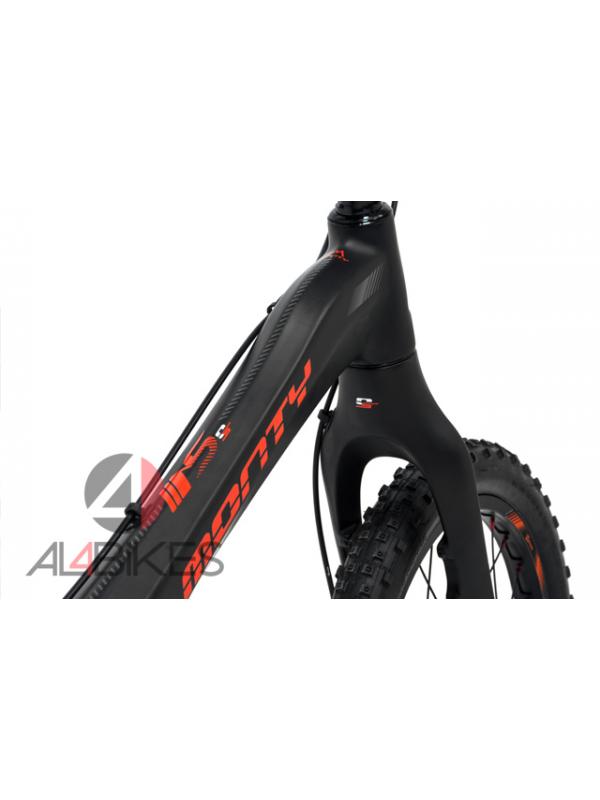

Frame and Fork

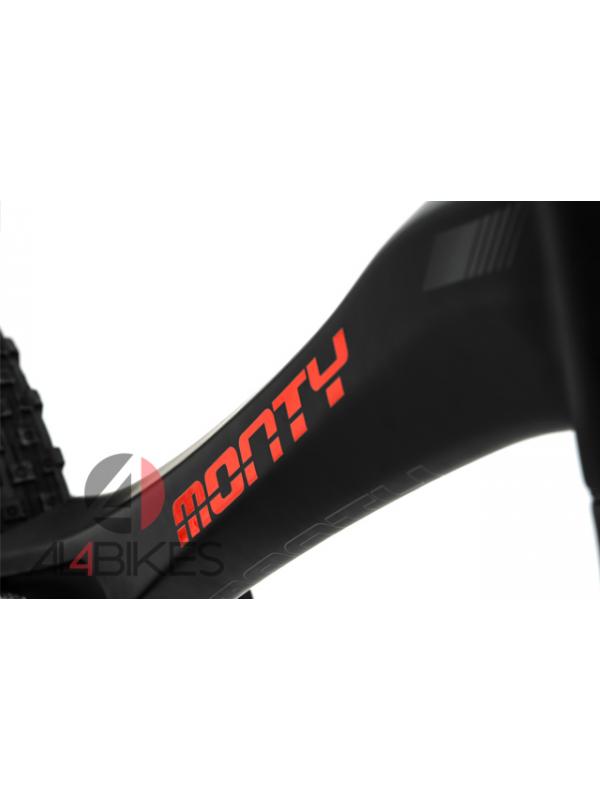

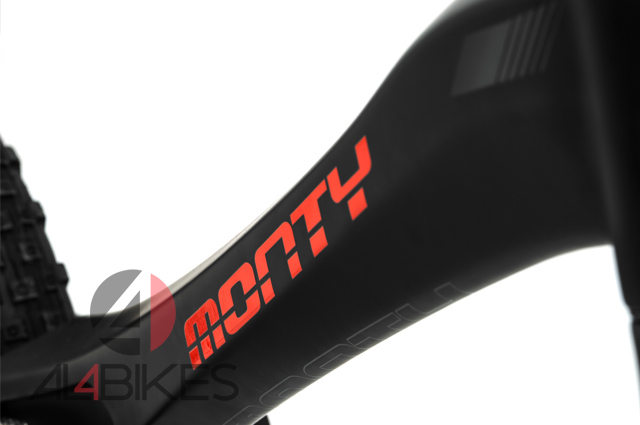

Frame: Carbon fiber UD Original Monty.
Fork: Carbon fiber UD Original Monty.

Wheels
Front hub: Monty support cross 28 spokes 100mm disc / rear hub, 32 spokes crossed Montyl disk support.
Front wheel: 20''Monty lightweight red anodised 28H / Rear wheel: 19''Monty lighter red 32H monolayer.
Spokes: Black stainless Monty red nipples.
Tape back wheels: Monty black.
Front camera: Monty 20 ".
Rear camera: Monty 19 ".
Front tire: Monty Eagle Claw Race 20 X 2.00.
Rear tire: Monty Eagle Claw Race 19 X2.60.

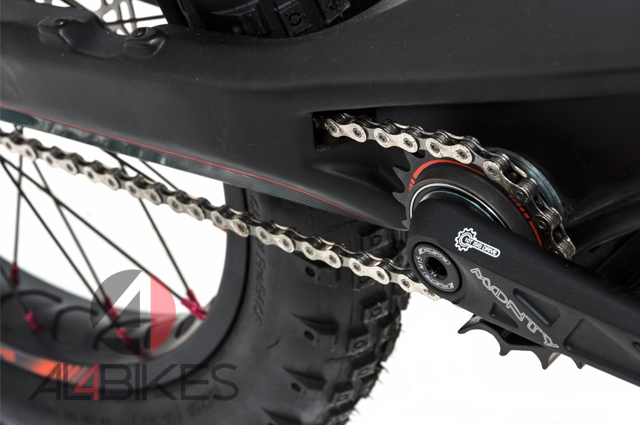

Transmission

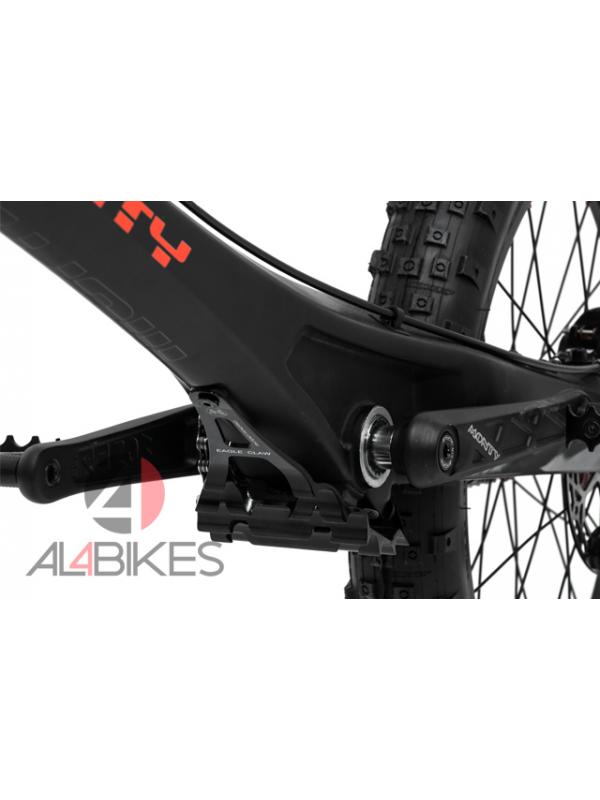

Cranks: Monty Aluminium 7075 T6 158mm  black finish.
Freewheel Monty Triggers compound 18T 9 Pawls.

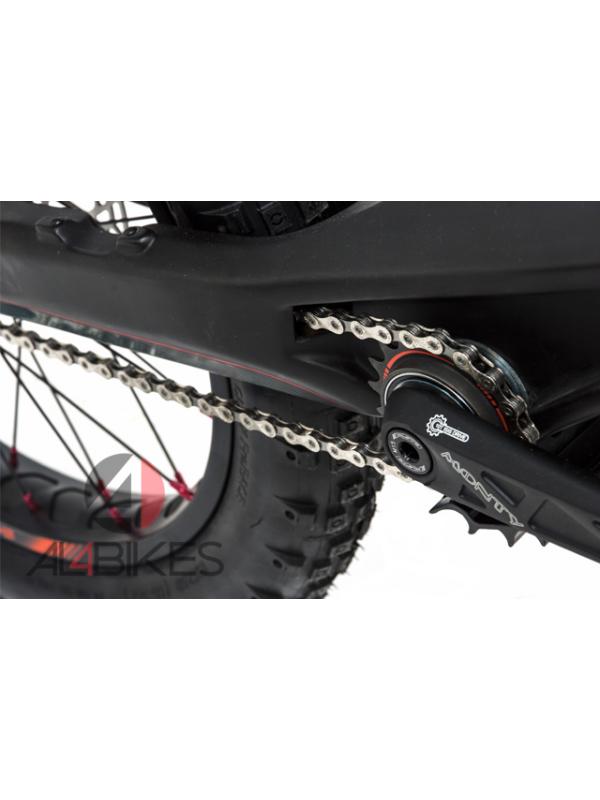

Chain: Conex slight 3 / 32''silver finish / Monty chain tensioner.
Fixed gear: 12 teeth Monty.
Pedals: Monty monojaulas 7075 aluminum composite.
Bottom bracket: First 1.37x24T.
Protector: Monty Eagle Claw with small steps, black finish.

Brakes

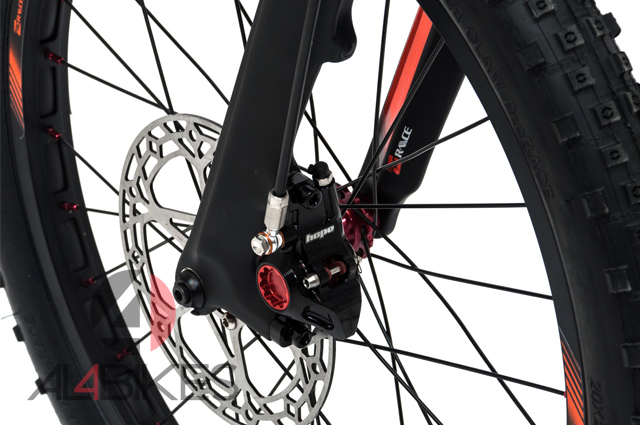

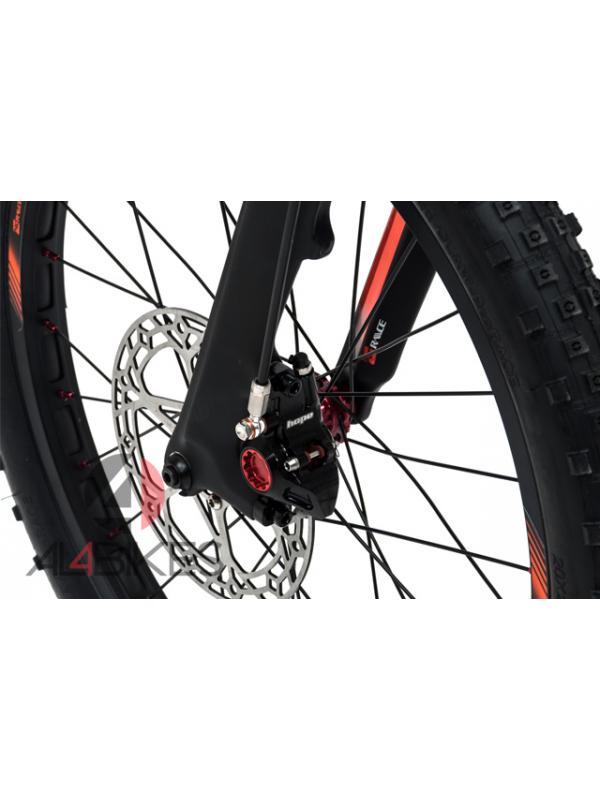

Front brake: Hope trial by Monty. 160mm disc.

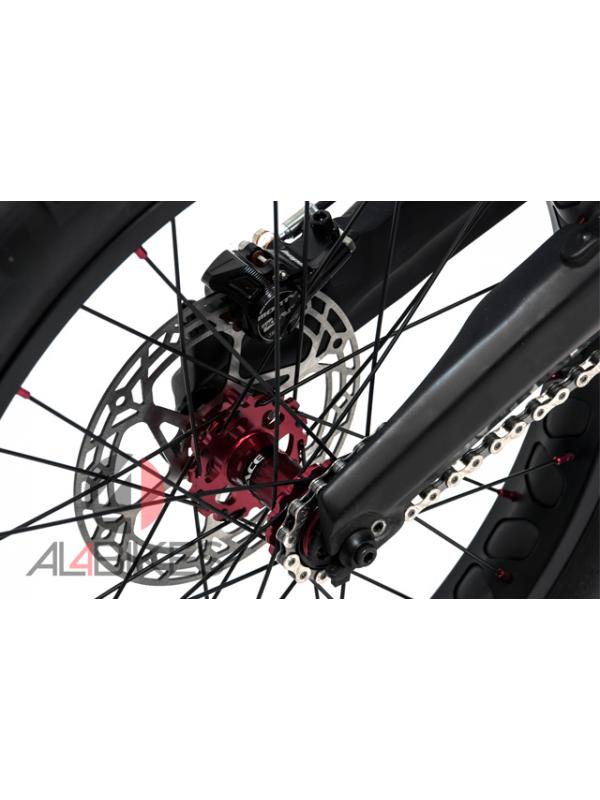

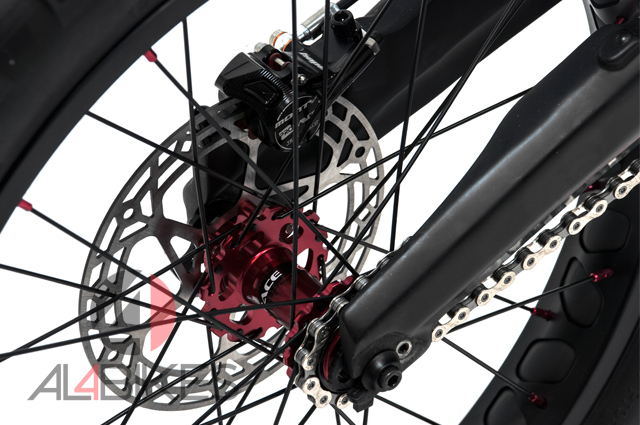

Rear brake: Hope trial by Monty. 160mm disc.


Headset
Headset: First Monty 1-1/8 "aluminum pans and sealed bearings.
Stem: 35 ° Dia.31.8mm Monty 170mm. Monty and aluminum screw cap red.
Grips: Monty fine foam.
Handlebar: Monty UD carbon fiber 31.8mm 720mm length.

Geometries
Pod width: 105mm.
Bottom Bracket: 68mm.
And steering head angle: 71.5º

Wheelbase:1010mm
Bottom bracket to rear axle distance: 349mm.
Bottom Bracket Height: +85mm.

Weight 7Kg 110 Gr.
