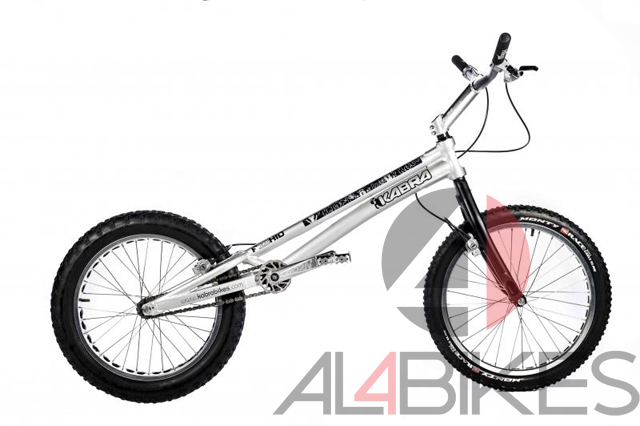

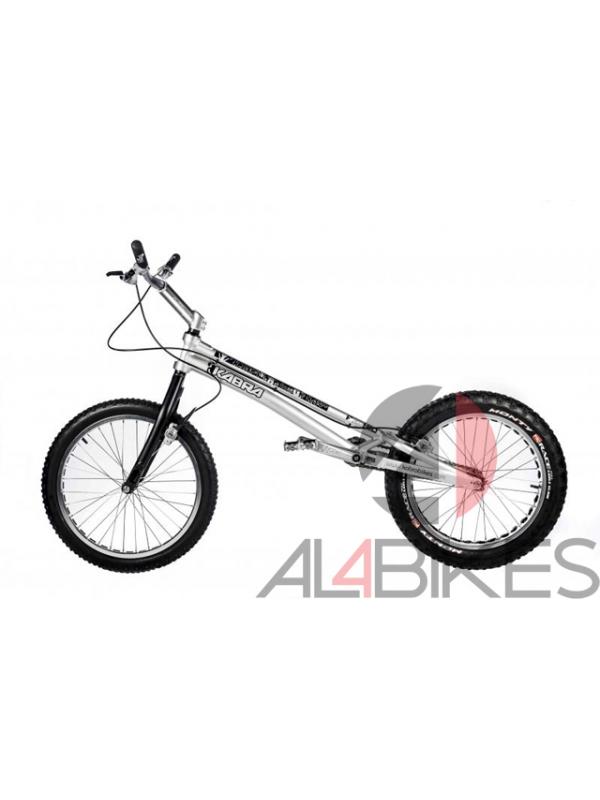

Kabra F20 HID Technical Specifications
Frame and Fork
Frame: Kabra F20 HS. 7005 T-6 aluminum of high quality.
Fork: Kabra 20 ". 7005 T6 Aluminum. HS Support.
Wheels
Front hub:Because 28 spokes crossed support 100mm / rear hub: Because 32 spokes crossed.
Front wheel: 20'' monolayer Light Kabra 32mm / Rear wheel: Kabra Light 19'' 46mm black monolayer.
Spokes: Stainless black black leaders.
Tape bottom rims: Black.
Front camera: Monty 20 ".
Back camera: Monty 19 ".
Front tire: Monty Eagle Claw20x2.0.
Rear tire: Monty Eagle Claw 19x2.50.
Transmission
Cranks: Try All Light 160mm Isis Black aluminum 7075 T6.
Freewheel: 18T 9 Triggers Kabra.
Chain: KMC Light black finish.
Fixed Pinion: 12 teeth Cr Mo.
Pedals: Echo black.
Bottom Bracket: Neon Light 124mm ISIS.
Protector: Neon Type Ring.

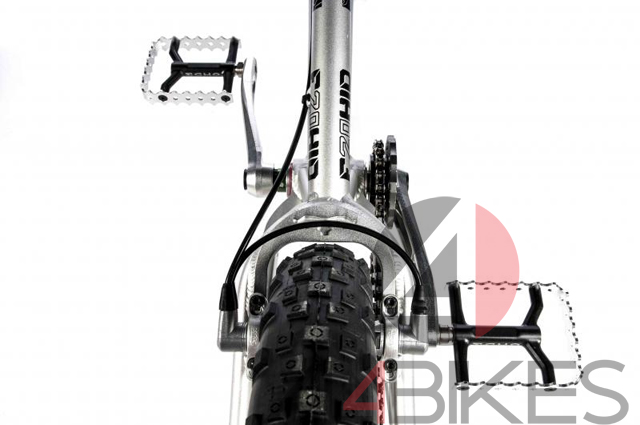

Brakes

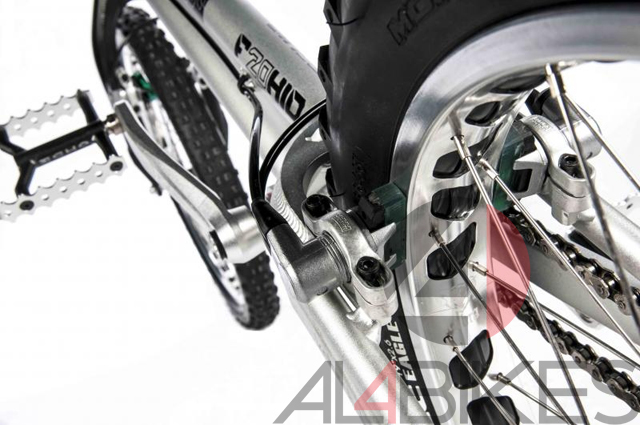

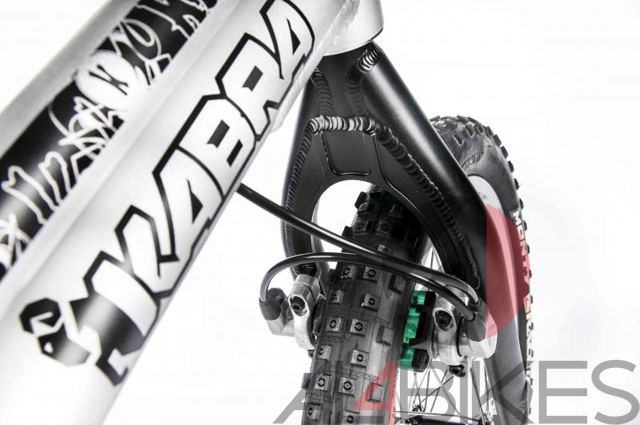

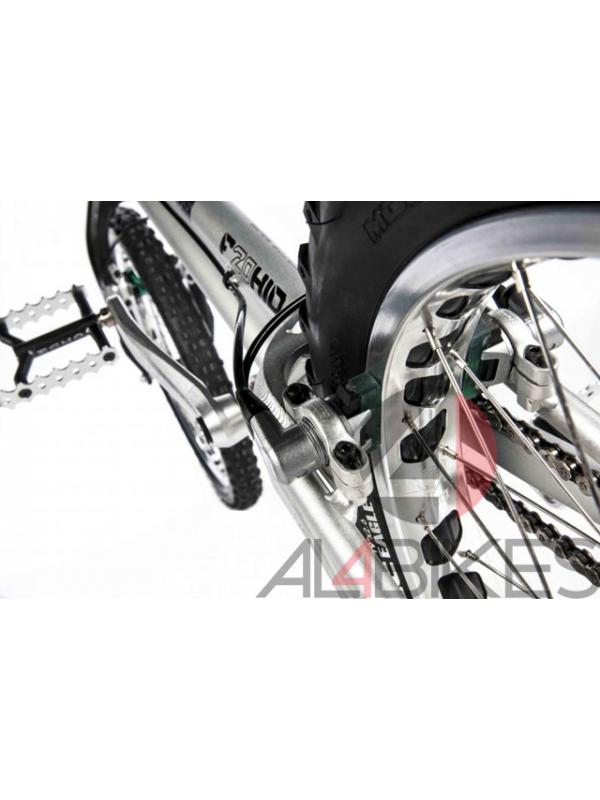

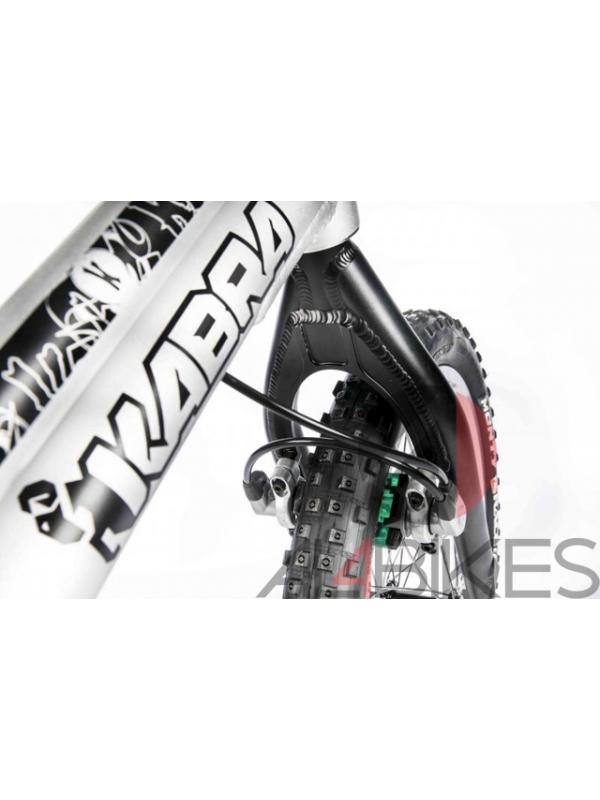

Front brake: Magura HS33.

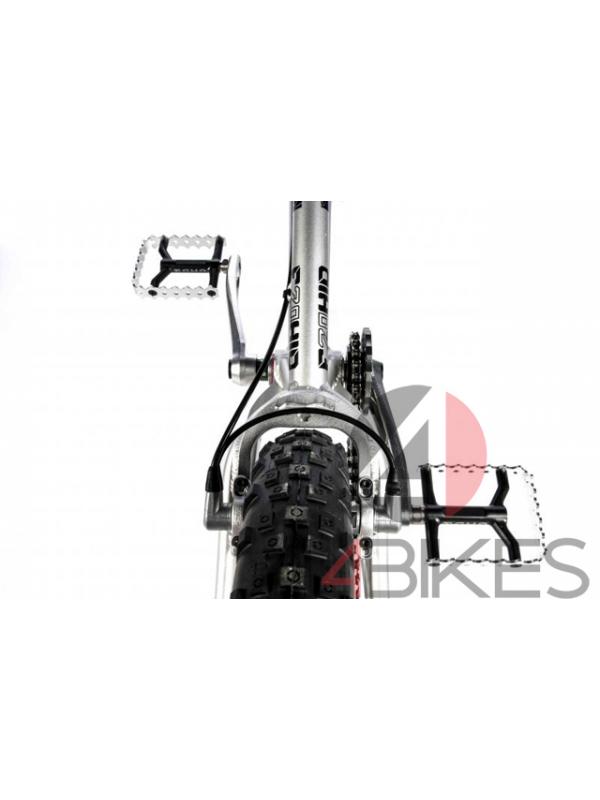

Rear brake: Magura HS33.
Headset
Address: Semi integrated 1 1/8.
Power: 30 ° Dia.31.8mm 150mm Neon.
Grips: Foam.

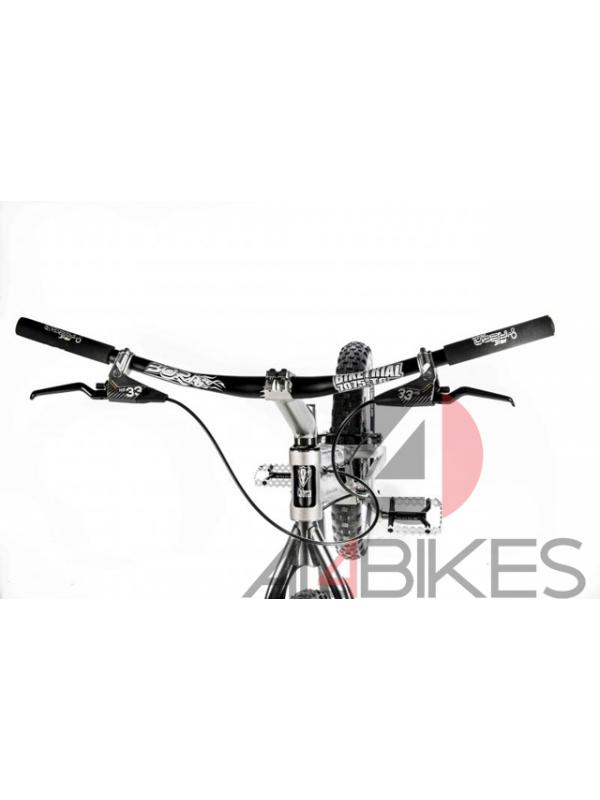

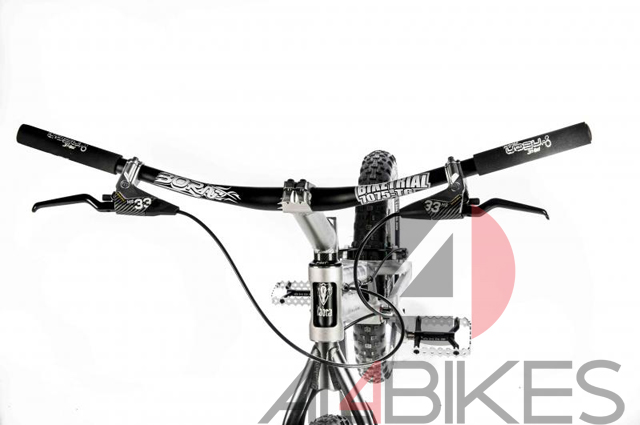

Handlebars: Because 7075 T6 Aluminum.
Geometries
Pod width: 116mm.
Bottom Bracket: 68mm
Steering head angle: 100mm
Wheelbase: 1000mm
Distance bottom bracket to the rear axle: 350mm
BB height: +80 mm
Weight: 7.4 kg approx.
The customer must select the frame color you want, Silver or Black
Attention, Read well the Technical Specifications because some accesories dont correspond with the picture.
