- Triangular tubing for the top and down tube increases frame strength and gives a greater weld area.
- Large gussets on the top and down tube help create a strong, stiff head tube join.

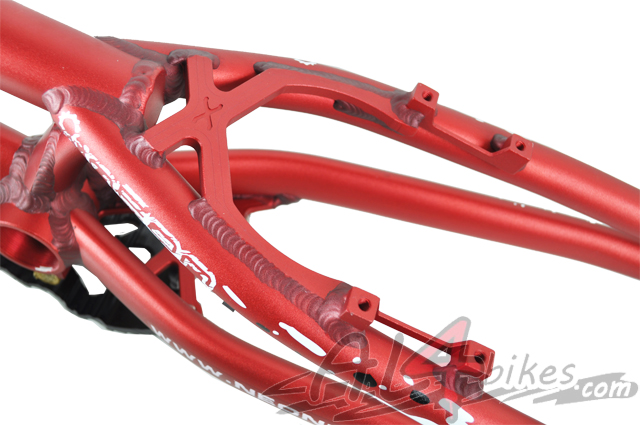

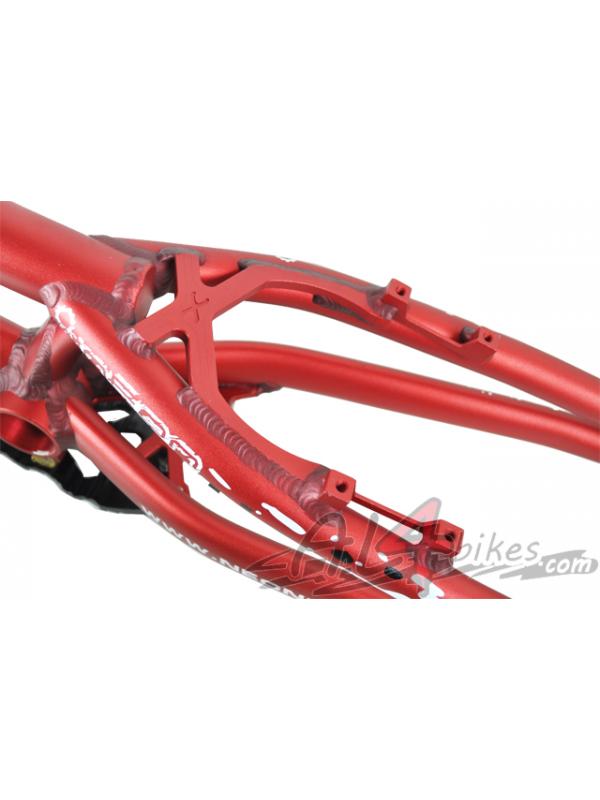

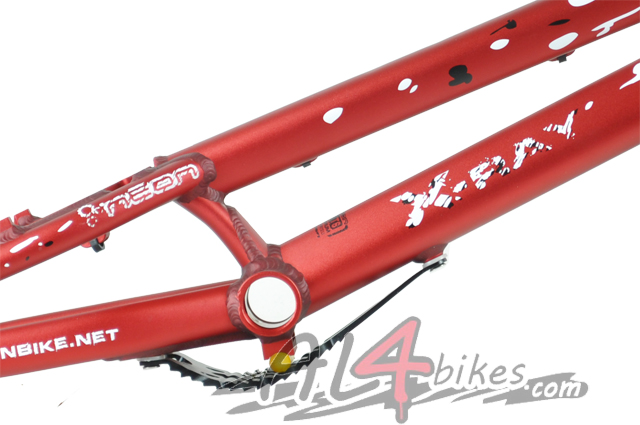

- 'X-Ray' built-in brake booster gives a stiffer, more responsive brake feel.
- Dedicated 4-bolt mounts spaced at 103mm.
- Reinforced IS disc mount increases braking options.

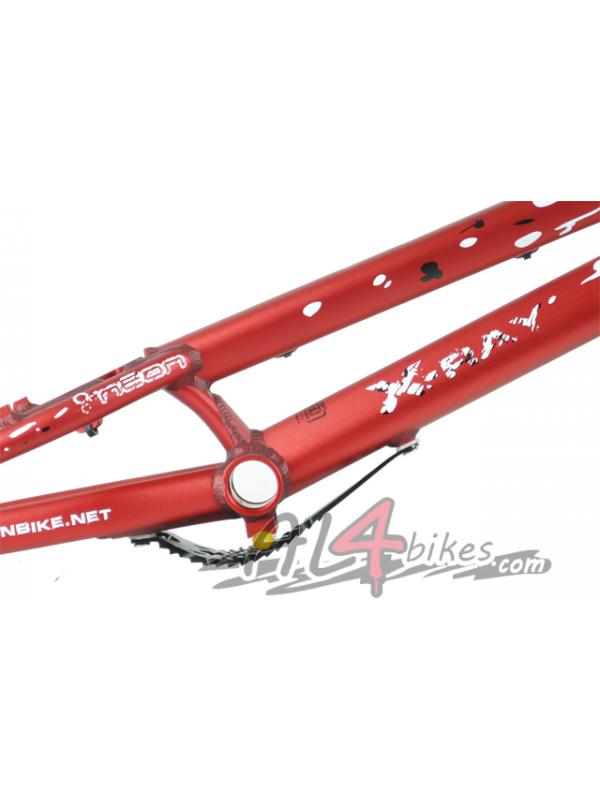

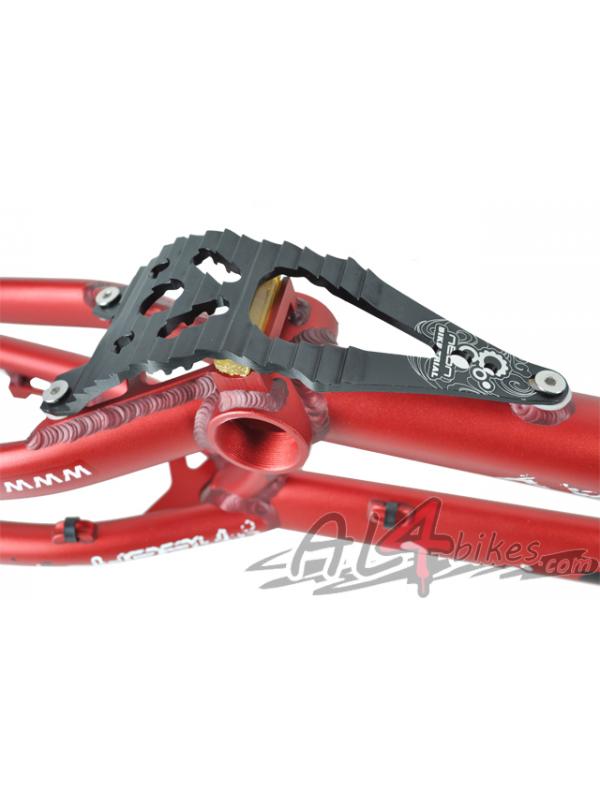

- 'X-Ray' reinforcing plate at the bash plate mounts help dissipate forces from use.

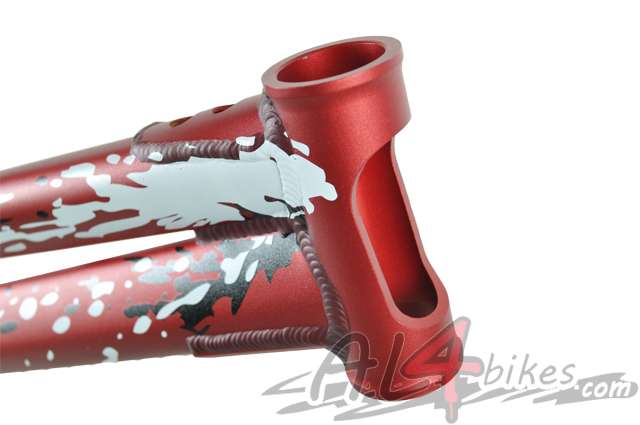

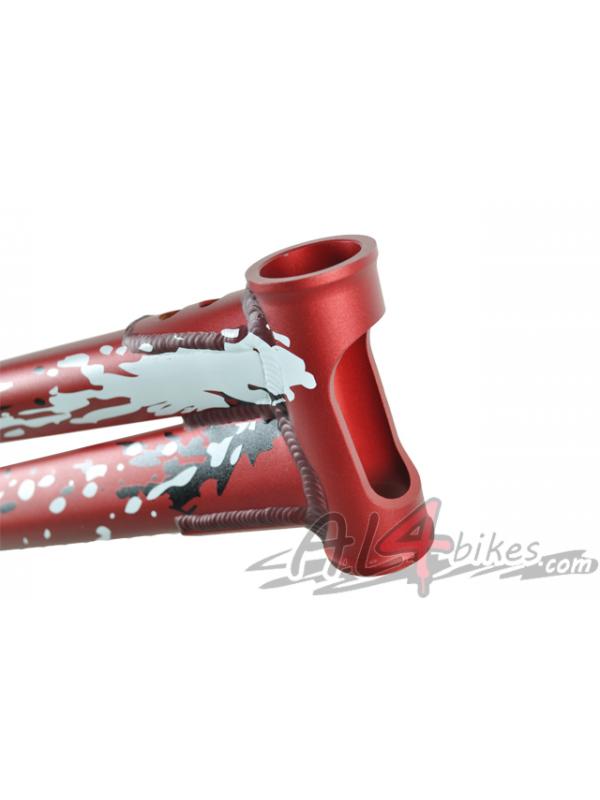

- 115mm long standard headtube is externally butted and machined to save weight. Large cut-out also helps shave excess weight.

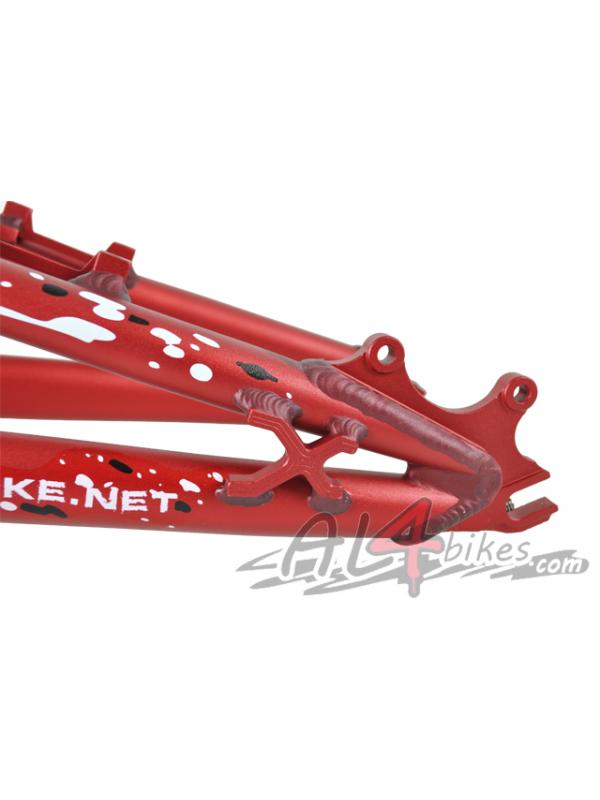

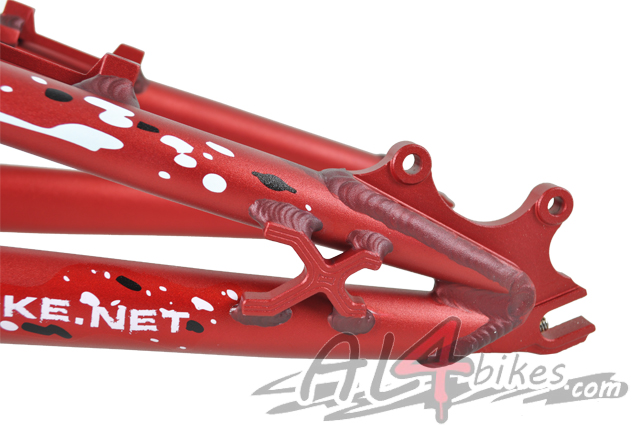

- Minimal horizontal dropouts offer a range of adjustment whilst being small and out of the way.
- Gussets placed at key points of the frame to add more strength and increase stiffness.
- Glossy powder coat finish is durable and long-lasting, combined with colour-matching X-Ray graphics to give the frame a great look.
- Available in Black or Red.

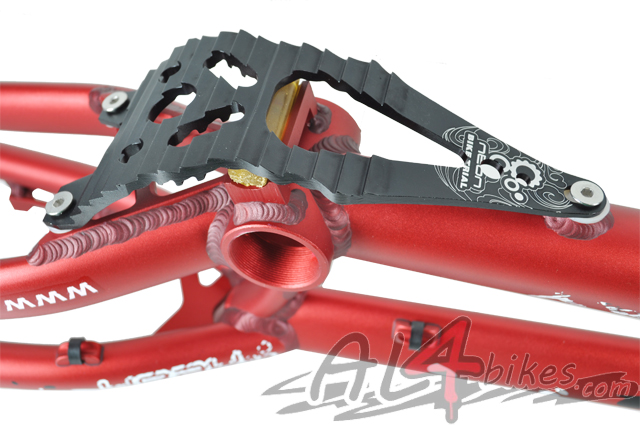

- Sold complete with bash plate.
- Weight: 1.469kg (Plus bash plate, bolts and rubber at 118g)

Geometry

Wheelbase: 1000mm
Chainstay Length: 350mm
BB Rise: 70mm
Head Angle: 71.5 degree
