Frame
- Made of high quality 6082-T6 aluminum and with tubes of variable thickness throughout its length.
- Top tube with triangular section and down tube with optimized curve to avoid possible collisions.
- The lightened bottom bracket tube is integrated in a single piece mechanized next to the joint reinforcement with the seat tubes.
- Oversized chainstays of rectangular section that give a robust and reliable construction.
- Incorporates bridge of transversal reinforcement in the upper seatstays.
- High precision CNC machined drops designed to use eccentric type tensioners.
Fork
- 26" trial fork for rim brake with 1-1/8" / 1.5 "tapered head tube
- Made of 6082-T6 aluminum with optimized thicknesses to improve resistance.
- Oversized blades that give a robust and reliable construction.
- CNC machined steering tube in one full piece to optimize rigidity.
- High precision CNC machined dropouts.
- Width of 100mm between dropouts compatible with the most of front hubs on the market.
Wheels

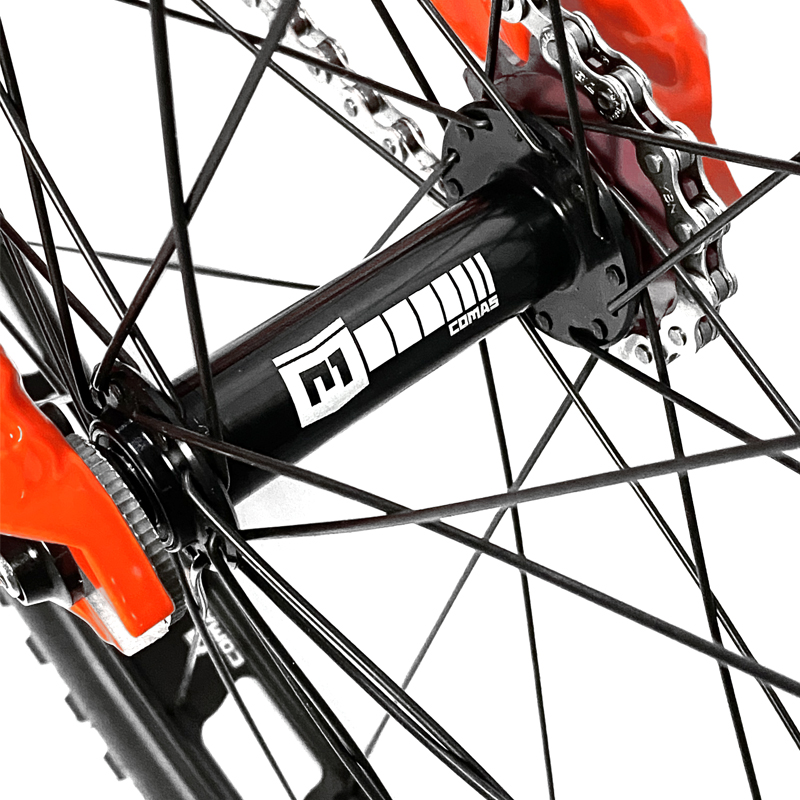

- Front hub: Comas Ultralight HS 100mm 28 spokes, 9mm threaded axle.
- Rear hub: Comas Ultralight HS 116mm 32 spokes, 10mm threaded axle, thread 1.37x24T
- Snail Cam: Comas eccentric type, 7075-T6, 49 positions
- Front Rim: Comas 26'', 28 holes, W Profile, Width 32mm, Lightened
- Rear tire: Comas 26", 32 holes, W Profile, 47mm Width, Lightened
- Radios: Comas Ultraligth 1.8mm
- Spoke nipples: Aluminum
- Front tire: Veerubber Waw Edition 26”x2.00
- Rear tire: Veerubber Waw Edition 26”x2.50

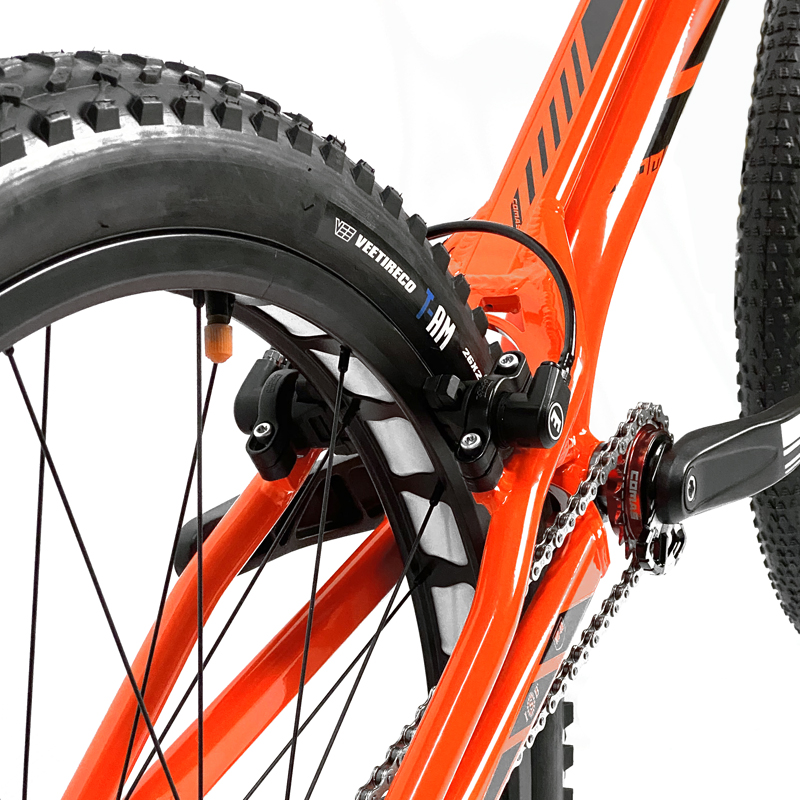

Brakes
- Brakes: Magura HS11, hydraulic rim brake, reversible pump
- Clamp support: Comas 7005-T6, symmetrical design, interior laser engraving for better fit
Drivetrain
- Crankset: Comas L170mm, offset 33mm, for threaded sprocket
- Bottom bracket: ISIS, machined in CrMo, aluminum cups, L128mm
- Freewheel: Comas 108.9, 18 teeth, red color
- Chain: YBN s20, 1/2x3/32”
- Sprocket: Comas 15T threaded, 7075-T6, width 12mm
- Pedals: Comas Mono-Cage, Low profile, 7075-T6
- Freewheel protector: Comas Ultralight type UCI (Ring)

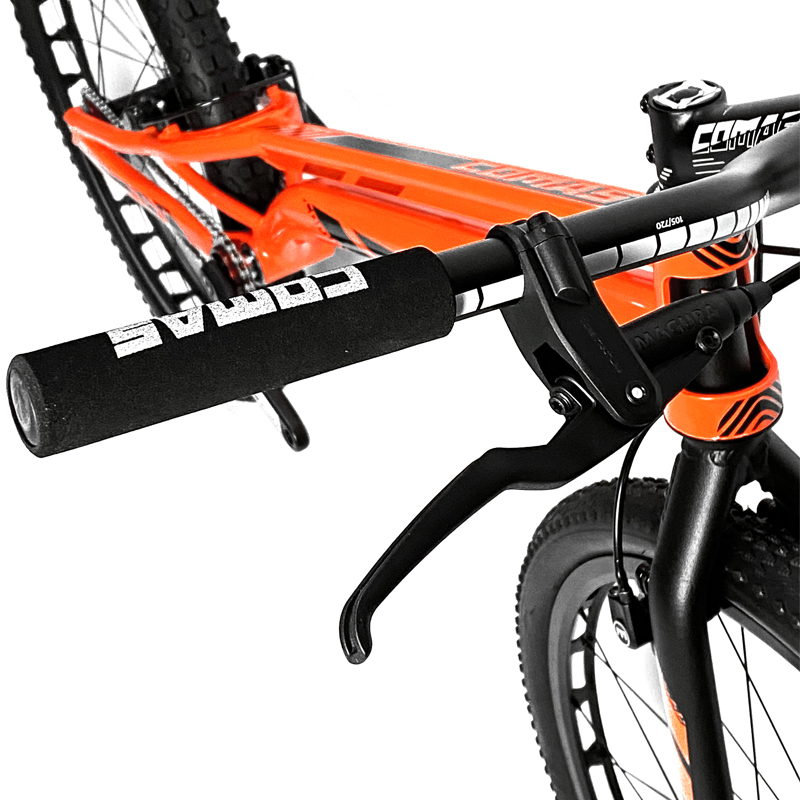

Steering
- Headset: Comas Semi-integrated Tapered 1-1/8"- 1.5"
- Stem: Comas of 140mm and 20º of inclination
- Grips: Comas Extra-thin foam, 4mm thickness
- Handlebar: Comas Aluminum 7075-T6, H105mm, L720mm
Geometry
- WD: 116mm
- BB: 68mm
- HT: 120mm
- RC: 380mm
- BH: +70mm
- HA: 72º
- OFF: 35mm
- WB: 1088mm
Colour
- Black with COMAS graphics in white, black and red
