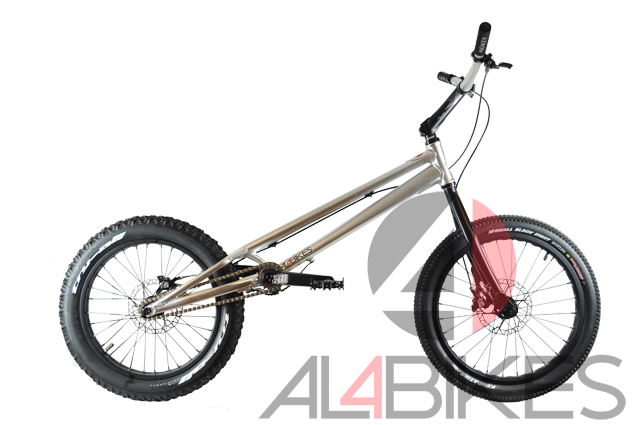

Technical Specifications B5R Bionic Series 6
Frame and Fork
Frame: Alu 6061 T-6. B5R Bionic Series 6.
Fork: Alu 6061 T-6 aluminum seatpost completely ZHI.
Wheels
Front hub: Try All black colored 28 spokes 100mm / Rear hub: Try All 32 spokes 116mm disc cross support.
Front Wheel: Try All light Black 28H 38mm / Rear rim: Try All lightweight 19'' 48.5mm Black 32H.Radios: Try All black steel black leaders.
Tape back wheels: Try All Blacks.

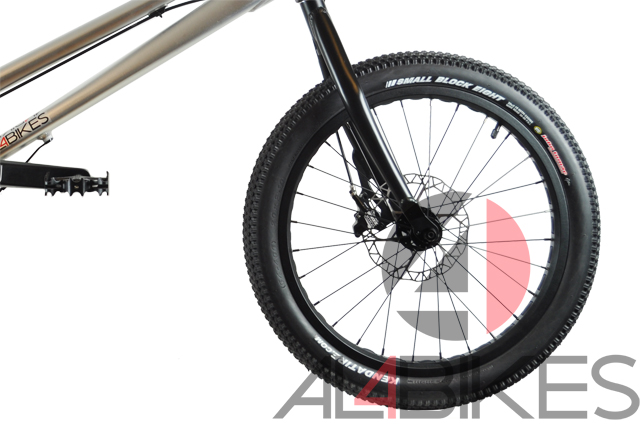

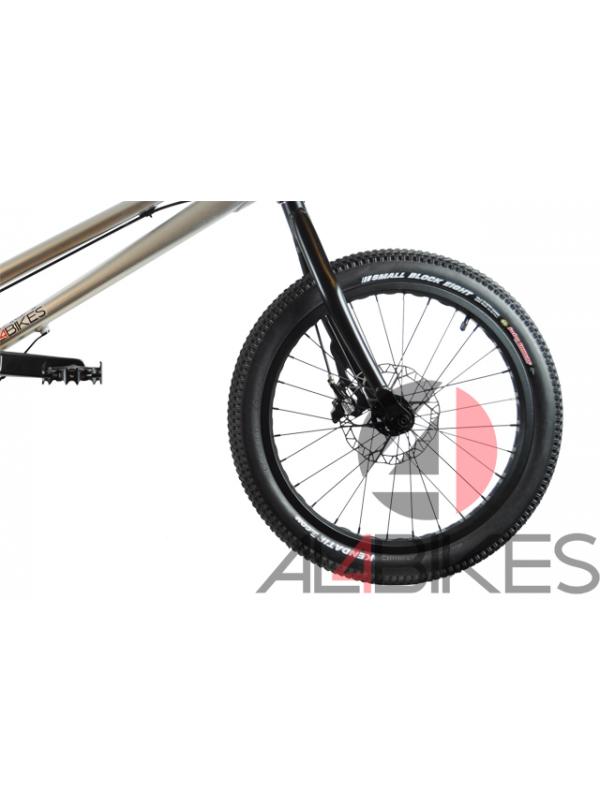

Front camera: Deestone 1.95/2.125.
Camera back: XLC 20X2.50/2.70.
Front tire: Kenda Small Block Eight 20 X 2.10.
Rear tire: Try All Light 20 x2.50.
Transmission

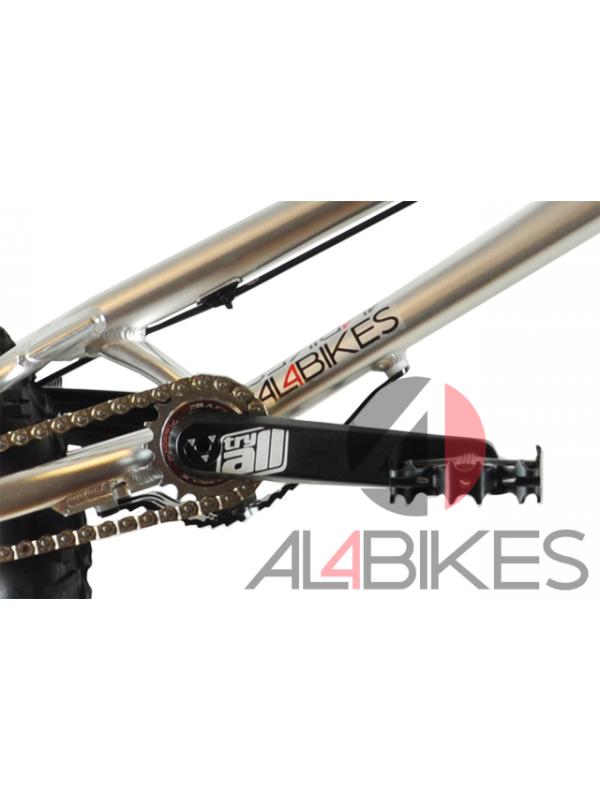

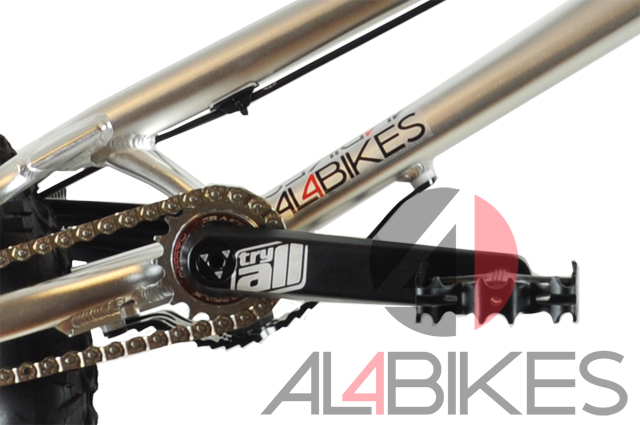

Cranks: Try All 160mm Aluminum 7075 T-6 black finish.
Freewheel: 18T 9 Triggers Monty red center.
Chain: Silver MK918 bn half links.
Fixed sprocket: 12 teeth Monty Cr Mo.
Pedals: Monty Ultralight 7075 aluminum black finish.
Bottom bracket: 122mm Isis VIZ red cups.
Protector: ZHI SL silver lighter.
Brakes
Front brake: Hope Zone trial black. Ultralight Al4bikes 160mm disc.

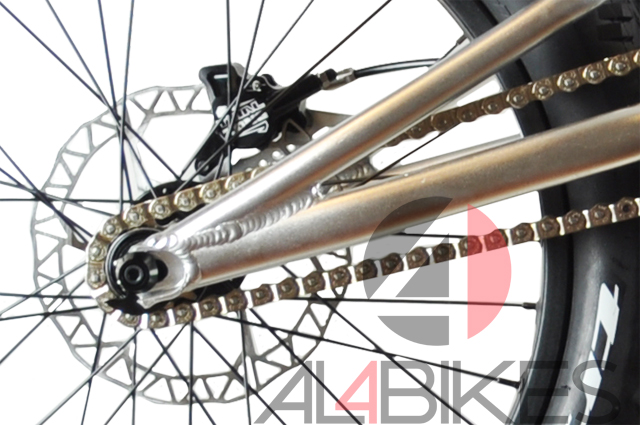

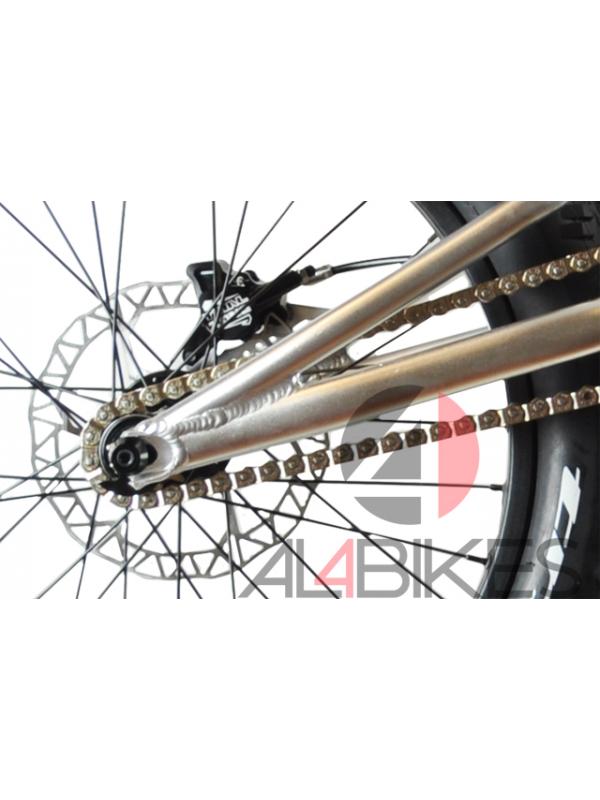

Rear brake: Hope Zone trial black. Ultralight Al4bikes 160mm disc.
Headset

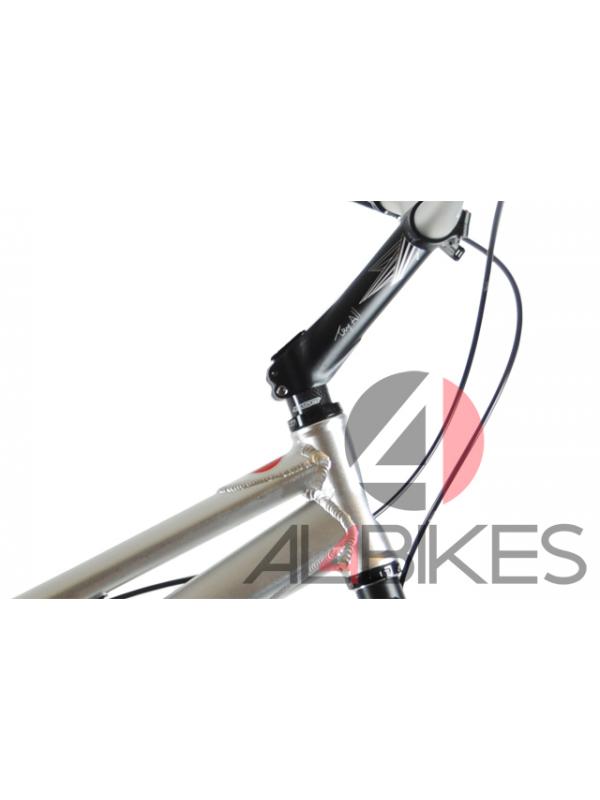

headset: ZHI CNC SL Black with sealed bearings.
Stem: Try All 150mm 30 º 3D. Aluminum screw cap and black VIZ.
Grips: Monty fine foam.
Handlebar: Try All Oversize Black Rage 730mm.
Geometries
Pod width 116mm.
Bottom Bracket: 68mm
And head tube angle: 112mm
Wheelbase: 1000mm
Bottom bracket to rear axle distance: 350mm
BB height: +85 mm
Weight 8kg 330Gr.
