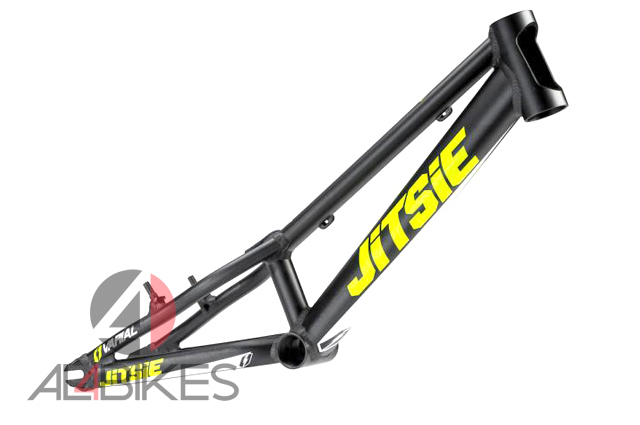

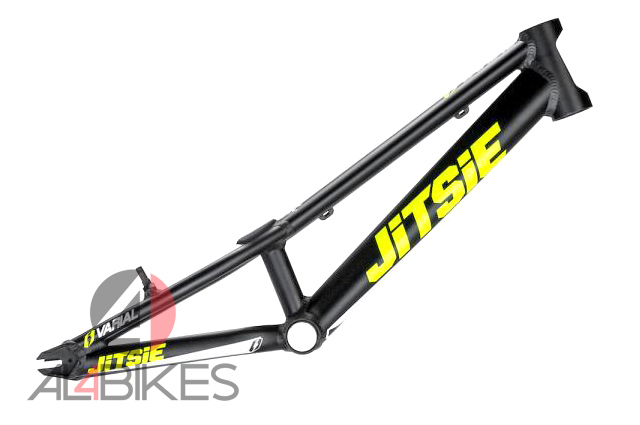

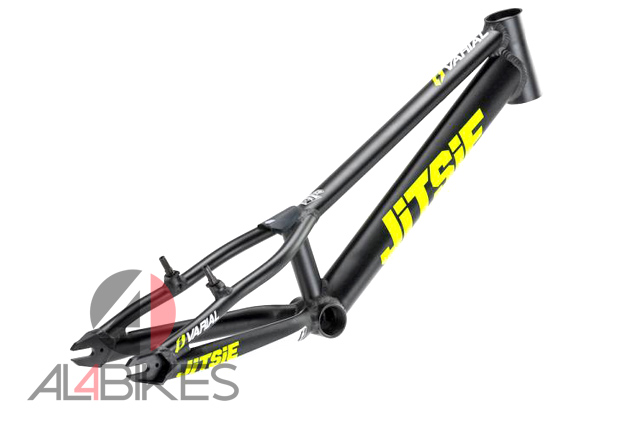

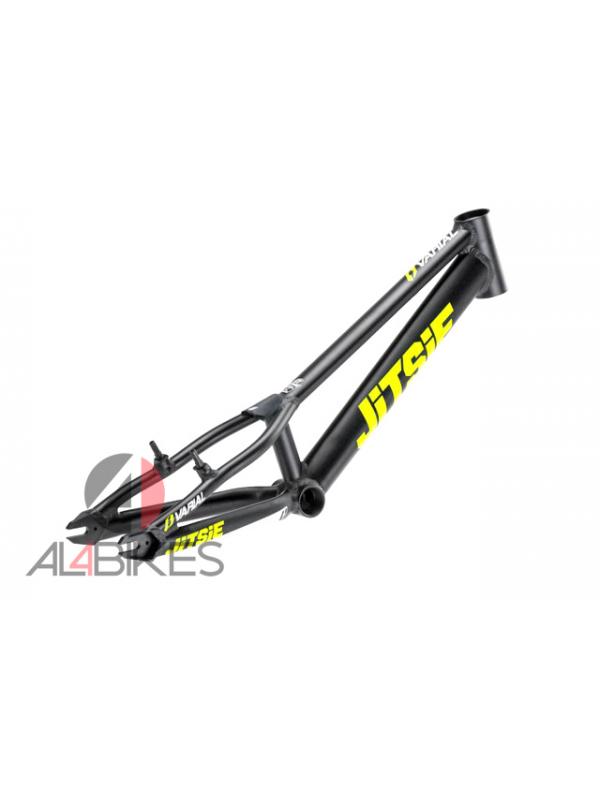

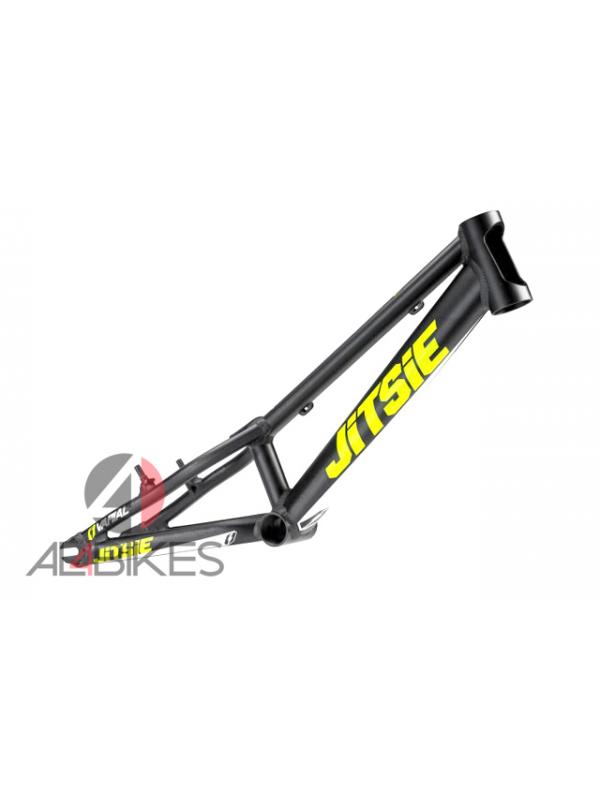

-Made of aerospace 6061-T6 aluminium.
-110mm high CNC machined headtube designed for semi-integrated headset.
-68mm wide bottom bracket shell for ISIS bottom bracket.
-V-brake mounts which also accept aftermarket Magura Evo2 rim brake clamps.
-CNC machined horizontal dropouts distanced 116 mm apart come supplied with steel snail cam bolts.
-Sandblasted and black anodized finish with Jitsie graphics.
-Frame comes supplied with lightweight silicon seat plug.
-Frame allows for the Jitsie aftermarket seat to be installed.
GEOMETRY:
-Wheelbase: 740 mm.
-Chainstay length: 280 mm.
-Bottom bracket height: 25 mm.
-Headtube: 110 mm.
- Headtube angle: 71.5°
(geometry based on Jitsie Varial fork 300mm and +45mm offset)
