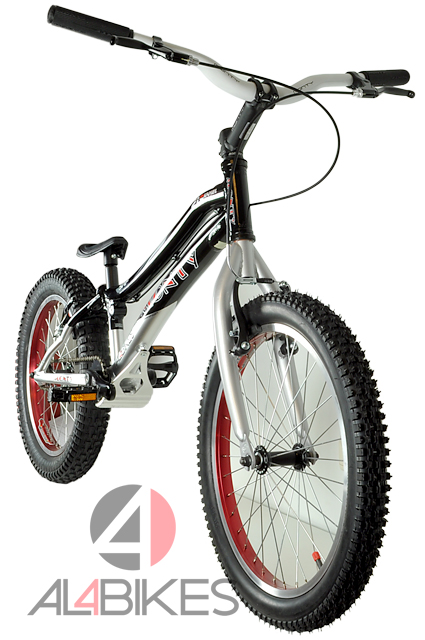

Technical Specifications Monty 219 kamel V-Brake

Frame and Fork
Frame: Alu 7005 T6. Kamel 2011. Tig Plus.Chasis adsorbed concave design impacts.
Fork: steel tig welded chromoly plus. Arms day. 31.8mm.100mm wide. Mounts V-Brake.

Wheels
Front hub: Monty 36 spokes crossed / Rear hub: Monty 36 spokes crossed.
Front wheel: 20'' Monty round holes 36H Red w / rear wheel: 19'' Monty 36H Red with round holes.
Radios: Monty steel silver leaders.
Tape back wheels: Monty black.
Front camera: Monty 20 ".
Camera back: Monty 19 ".
Front tire: 20 X 2.00 Monty.
Rear tire: Monty width 19 X2.70.

Transmission
Cranks: Monty 6061-T6. Square type. L158mm. Plate 21T.
Chain: KMC.
Pinion: 21T front plate and rear sprocket 16T free.
Pedals: Monty black platform.
Bottom bracket: square type. Sealed bearings. L127mm. 1.37x24T.
Protector: Monty aluminum silver.

Brakes
Front Brake: Monty V-Brake.
Rear Brake: Mont V-Brake. (Posible to mount a HS brake thanks to the support on the frame incorporated)

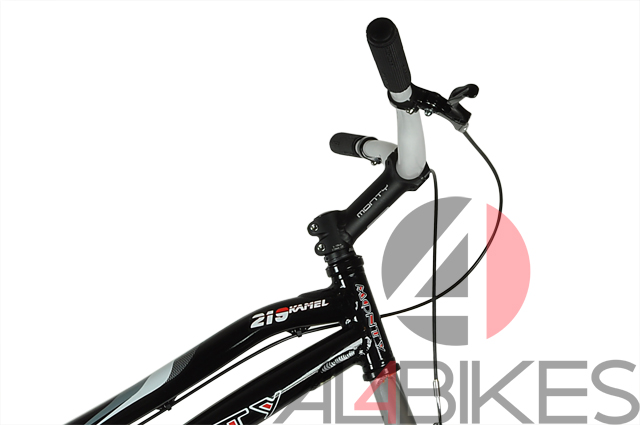

Headset
Address: 1-1/8 "Ahead sealed.
Power: Monty 6061. 120mm with 25 °.
Grips: Monty thin foam.
Handlebars: 6061 T6 aluminum Monty 31.8mm Length 680mm day. Color White.

Weight 10 Kg 450Gr
